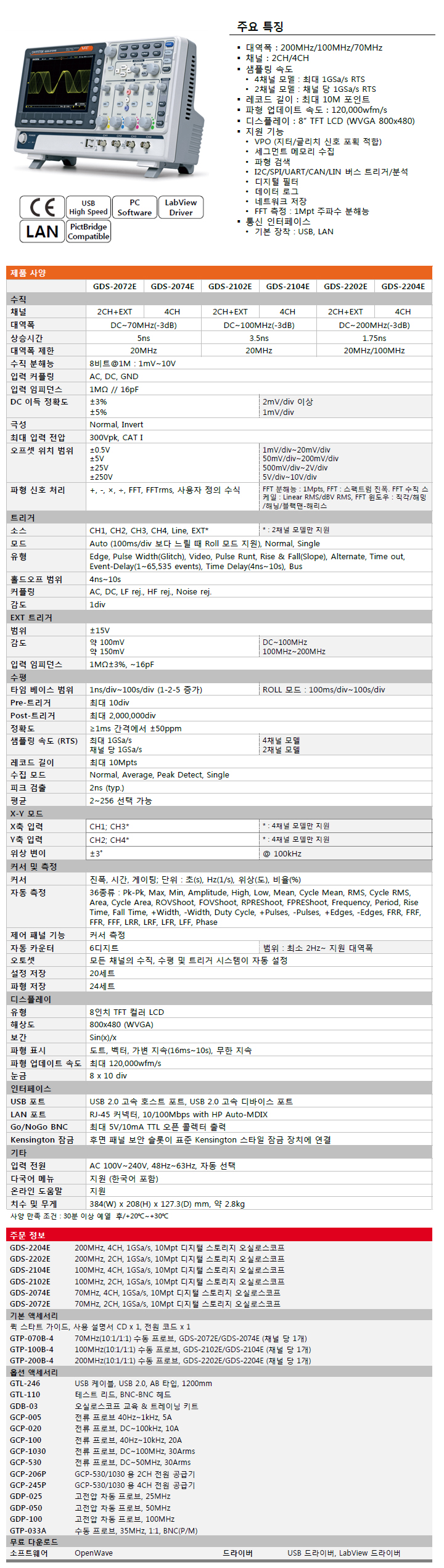

주요 특징

• 200/100/70MHz Bandwidth Selection; 2 or 4 Channels

• 1GSa/s Real-Time Sampling Rate for Each Channel (2ch model) ; 1GSa/s Maximum Real-Time Sampling Rate (4ch model)

• Standard 10M Maximum Memory Depth and VPO Waveform Display Technology

• Waveform Update Rate of 120,000 wfm/s

• 8 ” WVGA TFT LCD Display

• FFT with Maximum 1M points to Provide Higher Frequency Domain Resolution Measurement

• High and Low Pass Digital Filter Functions

• 29,000 Sections of Segmented Memory and Waveform Search Functions

• I2C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Function

• Data Log Function Tracks Signal Changes Up To 100 hours

• Provide Remote Internet Storage Function
