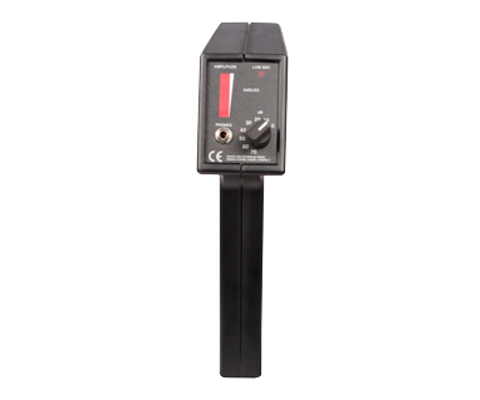

Hand-held ABS pistol type ultrasonic processor, stainless steel sensor enclosures

SMD/Solid State hybrid heterodyne receiver

Peak response: 36-44 kHz

10 segment LED Bar Graph (red)

8 position precision attenuation

9 Volt Alkaline Battery

LED

Weight: 0.07 kg (2.5 oz)
Operating Temperature Range: -30 °C to +75 °C (-22 °F to 167 °F)
Cable: 122cm (48”) shielded
Cable Pull: 9,07 kg (20 lbs.)
Frequency Range: 300 to 3000 Hz
Impedance: 150Ω
Molded Connector

Scanning Module (SCM-1), Stainless Steel Unisonic (single transducer) piezo electric crystal type;
Stethoscope/Contact Module (STM-1), Stainless Steel plug-in type with 14 cm (5.5”), Stainless Steel Waveguide;
Rubber Focusing Probe Shields stray ultrasonic signals and focuses detected signals

Patented warble tone transmission

Response time: 300 msec

0 - 50 °C (32 °F - 120 °F)

10-95% non-condensing at up to 30 °C (86 °F)

18 °C - 54 °C (0 °F - 130 °F)

5 years (1-year parts/labor standard, - details available on request)

13.3 x 5 x 20.3 cm (5.25” x 2” x 8”)

0.3 kg (11 oz)

Nylon Cordura soft carrying case
